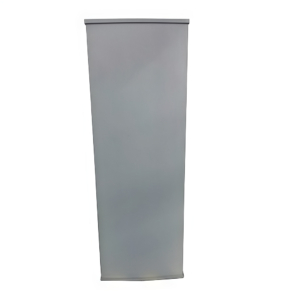

NT-33 Drone Directional Countermeasure System

Product Overview:

The NT‑33 Drone Directional Countermeasure System supports autonomous monitoring and customizable jamming strategies, enabling both manual and automatic responses to unauthorized drones. Featuring a modular design, the system allows flexible configuration of jamming frequency bands, signal sources, and other operating parameters.

Product Features

Unattended Operation

In unattended mode, the system automatically intercepts non‑whitelisted drones within its effective range and generates detailed event logs.

Networking & Remote Control

Multiple units can be networked for coordinated operation, and the system supports remote management and control.

Drone Electromagnetic Jamming

By transmitting multi‑band jamming signals, the system disrupts and blocks the drone’s remote control, navigation, and video downlink links, forcing the target drone to land or return to home. This effectively establishes a protected drone no‑fly zone.

Technical Specifications

Main Specifications
Parameter	Specification
Effective Interception	≥1 km (The effective range varies depending on UAV models and environmental conditions)
Jamming Frequency Bands	CH1: 420 MHz – 450 MHz CH2: 750 MHz – 850 MHz CH3: 850 MHz – 950 MHz CH4: 1420 MHz – 1450 MHz CH5: 1800 MHz – 1900 MHz CH6: 1900 MHz – 2000 MHz CH7: 2300 MHz – 2400 MHz CH8: 2400 MHz – 2500 MHz CH9: 2500 MHz – 2600 MHz CH10: 3300 MHz – 3600 MHz CH11: 4000 MHz – 4900 MHz CH12: 4900 MHz – 5300 MHz CH13: 5300 MHz – 5750 MHz CH14: 5750 MHz – 6200 MHz
Other Specifications
Parameter	Specification
Power Supply	AC 160~220 V, 50 Hz / 60 Hz
Communication Interface	RJ45 100 Mbps Ethernet Port
Operating Temperature	-20°C ~ 55°C
Storage Temperature	-30°C ~ 60°C
