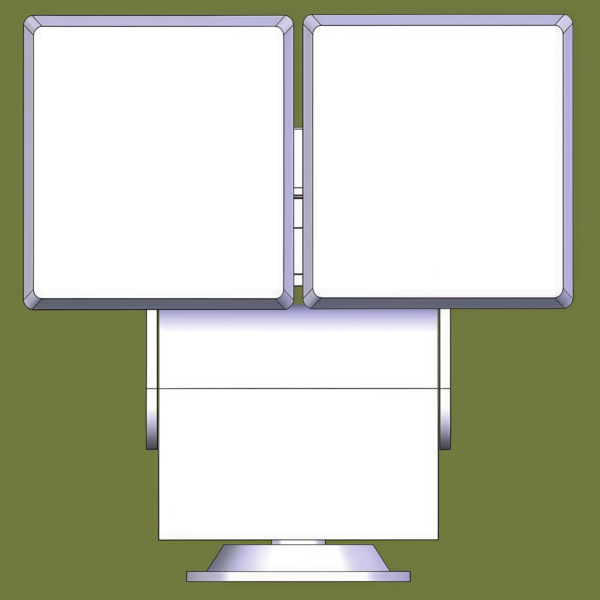

NV-3LL UAV Integrated Jamming & Spoofing System

Product Overview:

The NV‑3LL UAV Integrated Jamming & Spoofing System is designed to disrupt and suppress UAV remote control and video transmission signals, while performing high-precision navigation signal spoofing.

Product Features:

Electromagnetic Jamming Capability

Capable of countering multi-directional and multi-batch drones simultaneously.

Provides omnidirectional jamming against drones operating in the following ISM frequency bands:

410–450 MHz, 840–930 MHz, 1170–1280 MHz, 1410–1470 MHz, 2400–2485 MHz, 5150–5250 MHz, 5725–5850 MHz.

Equipped with directional jamming modules covering a wide frequency range of 200 MHz to 6000 MHz.

Navigation Spoofing Function

Performs real-time drone spoofing in actual operational environments;

Simulates spatial position, velocity, altitude and other navigation parameters;

Forces intruding drones to divert away from protected areas;

Guides satellite-navigated drones to deviate from their pre-planned flight path toward a designated direction, and achieves controlled, targeted landing.

High Ingress Protection Level

Ingress protection rating up to IP67, ideal for high-temperature, high-salt-spray coastal environments.

Weatherproof & High Reliability

Operates unaffected by weather conditions and supports 24/7 uninterrupted operation.

Technical Specifications

Parameter	Specification
Weight	PTZ: 62.5 kg Jamming Host: 45 kg Antenna: 2 kg × 2
Dimensions	PTZ: 464 mm × 325 mm × 405 mm Jamming Host: 630 mm × 442 mm × 190 mm Antenna: 390 mm × 390 mm × 50 mm
Frequency Range	CH1: 2.400 GHz ~ 2.4835 GHz CH2: 5.725 GHz ~ 5.850 GHz CH3: 1.555 GHz ~ 1.620 GHz CH4: 1.15 GHz ~ 1.25 GHz CH5: 900 MHz ~ 930 MHz CH6: 423 MHz ~ 443 MHz
Transmit Power	Transmit power for each frequency band is not less than:</p > CH1: 100 W CH2: 80 W CH3: 1 W (Transmit power of navigation spoofing antenna) CH4: 30 W CH5: 80 W CH6: 50 W
Effective Image Transmission Jamming Range	≥3 km
Navigation Spoofing	Transmit frequency bands: GPS (L1), BDS (B1), GLONASS (L1)
Effective Spoofing Range	≥3 km
Jamming Operation Modes	Force Landing, Diversion (Each frequency band can be controlled independently)
Remote Control Feature	The device supports networking for remote operation and control
Interoperability Function	By receiving target position information from radar or electro-optical systems, it controls the PTZ to rotate and point to the target UAV’s position to achieve directional electronic jamming
Antenna Main Lobe Width	Horizontal Lobe Width ≥ 20° Vertical Lobe Width ≥ 20°
PTZ Rotation Performance	Horizontal Angle: 360° Tilt Angle: -70° ~ +70°
Data Interface	100 Mbps Ethernet Port
Power Supply	AC 220V±10%, 50 Hz ~ 60 Hz, 2000 W (Max)
