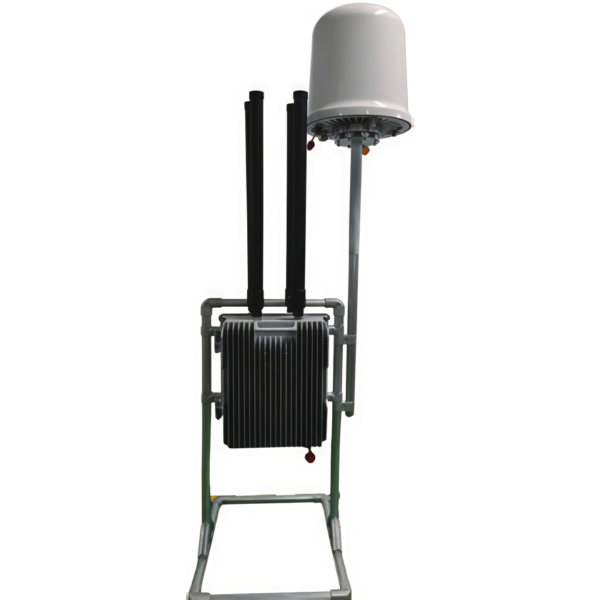

NV-F Integrated UAV Detection and Countermeasure System

Product Overview：

The NV‑F integrated UAV detection and countermeasure system supports passive RF detection, identification and jamming of unmanned aerial vehicles. It can recognize common civil UAV models on the market, including their video downlink signals and remote control signals.

Product Features：

Capable of large-capacity target detection and simultaneous tracking of more than 40 targets, with a certain capability to locate UAV remote control operators.
Detection range > 5 km, with a maximum effective range up to 10 km.
Enables precision jamming against unauthorized invading UAVs.
The system adopts passive signal reception, making it weather‑resistant and capable of 24/7 all‑weather operation.
Low electromagnetic radiation, no high-power transmission during monitoring.
Ultra-fast response: detects UAVs within 3 seconds after takeoff, and reports azimuth, position, time, frequency, received power, confidence level, model and manufacturer information. Integrated with the back-end management system, it supports UAV intrusion trace query, real-time alarm and alarm information push.

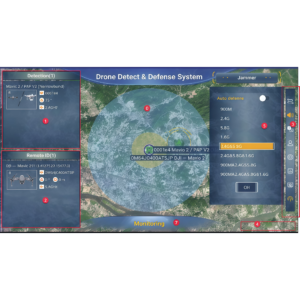

The system features a comprehensive and intuitive user interface. The main APP interface includes:a. Aircraft ID b. Toolbar c. Prompt area d. Submenu function bar e. Map f. Monitoring panel

Detection Performance

Parameter	Specification
Effective Detection Range	≥5 km
Detection Azimuth Accuracy	≤10°C
Minimum Detection Altitude	0 m
Detection Coverage	360° Full Azimuth
Detection Frequency	70 MHz – 6000 MHz
Range
Maximum Detection Speed	≥20 m/s
Simultaneous Detection Targets (Multi-target Detection)	≥40
Passive Detection Function	No electromagnetic waves are transmitted during UAV signal detection. In the absence of strong electromagnetic interference, the false alarm rate is ≤10%.
UAV Identification Function	It can identify the attitude and model of UAVs, as well as the unique electronic fingerprint ID of each UAV.
Non-Line-of-Sight Detection	The device can detect UAVs blocked by buildings or under non-line-of-sight conditions within the effective detection range.
Jamming Function & Performance
Parameter	Specification
Effective Interception Range	≥2 km (Under line-of-sight conditions with I/C=10:1; jamming effectiveness varies for different UAV models)
Response Time	≤2 s
Simultaneous Interception Targets (Multi-target Interception)	≥34
Jamming Frequency Bands & Power	2400–2488 MHz (±10 MHz) at 50±1 5725–5850 MHz (±10 MHz) at 48±1 5150–5250 MHz (±10 MHz) at 48±1 1555–1620 MHz (±10 MHz) at 44±1 902–928 MHz (±10 MHz) at 44±1 dBm
Positioning and Calibration	Provides automatic GPS positioning and north-seeking calibration functions
Unattended Operation Function	When unattended, within the effective interception range, the system automatically generates event logs and can intercept UAVs not in the white list.
Networking Function	Can network with multiple devices and support remote system control
Power Supply Voltage Adaptability	120V–240V AC
Protection Grade	IP66
Operating Temperature	-40°C – 60°C
Permissible Electromagnetic Radiation Intensity	≤12 V/m
