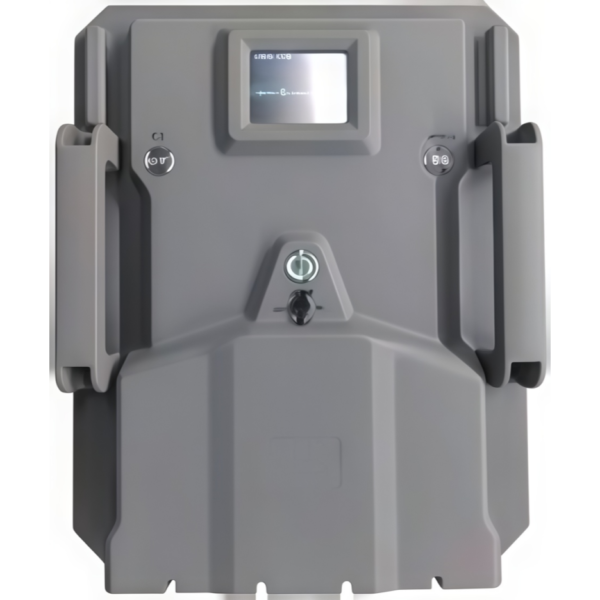

NV-H Portable UAV Countermeasure Equipment
Product Overview：
The NV‑H Portable UAV Countermeasure Equipment is engineered to counter rogue “black flight” drones. Lightweight, compact, and highly portable, it enables easy operation and rapid deployment. The system can effectively disrupt the communication, video transmission, and navigation links between drones and their remote controllers, allowing for the expulsion or forced landing of invading drones within the protected area.
Product Features:
- Integrated multi-band detection & jamming systemHigh-integration design with no external units required. Supports detection and countermeasure against drones operating on common frequencies, including 850 MHz, 915 MHz, 2.4 GHz, 5.1 GHz, and 5.8 GHz remote control and video transmission bands. It also provides jamming against mainstream navigation bands at 1.2 GHz and 1.6 GHz. (Jamming bands can be customized and fine-tuned per customer requirements.)
- Optimized jamming performanceSpecially designed for modern commercial and industrial drones, delivering enhanced suppression effectiveness.
- Full navigation signal shieldingCapable of shielding major global navigation signals, including GPS L1/L5, BeiDou B1, GLONASS, and Galileo.
- Simple, fast operationOne‑key quick startup for immediate use; jamming bands can be configured via the built‑in touchscreen.
- Compact & highly portableSmall form factor with a net weight of approximately 5 kg.
- High safety, reliability & environmental adaptabilityEquipped with under‑voltage protection, overcurrent protection, over‑temperature protection, and VSWR protection. Multiple protection mechanisms effectively suppress backflow electromagnetic radiation, ensuring stable and safe operation.
