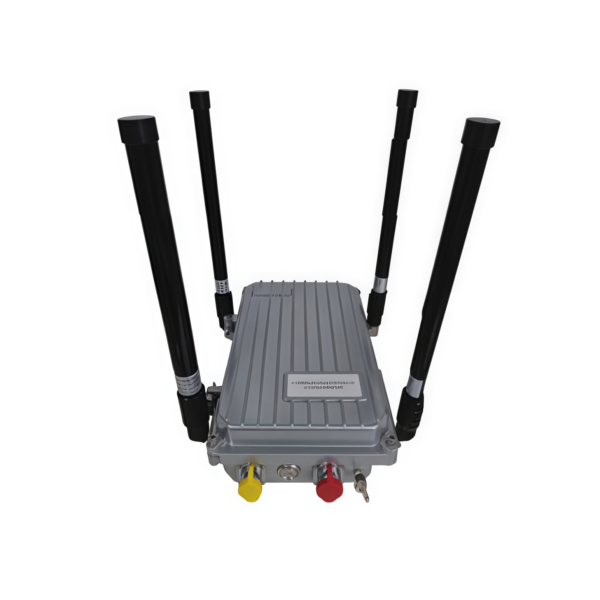

NV-OL UAV Low-Altitude Perception Device

The NV-OL UAV Low-Altitude Awareness Device is designed for UAVs equipped with Remote-ID (compliant with China’s GB42590-2023, US ASTM F3411-22a, and EU ASD-STAN PrEN4709-002) and Drone-ID, such as DJI Mavic 2, Mavic 3, Air 3S, Matrice 4, etc. It can parse detailed information including the UAV’s position and the pilot’s location, and also features expandable UAV spectrum detection and analysis capabilities. Unaffected by weather conditions, the device supports 24/7 continuous operation and has a detection range of over 5 km.

Product Features:

1.Supports detection and parsing of UAVs equipped with Remote-ID and Drone-ID.

2.Features expandable spectrum signal analysis, enabling detection of UAVs at distances of 5 km or farther.

3.Adopts a passive radio monitoring mechanism that does not interfere with the surrounding electromagnetic environment, ensuring high efficiency and safety.

4.Supports remote operation and maintenance, enabling automated device operation and reducing maintenance costs.

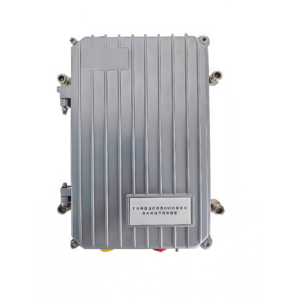

5.Composed of a monitoring host and antenna, the device is compact in size and easy to install.

Technical Specifications

Main Specifications
Parameter	Specification
Detection	2.4G/5.8G, expandable to 70 MHz ~ 6000 MHz
Frequency Range
Effective Detection Range	1 km ~ 20 km (The detection range varies depending on UAV models and environmental conditions)
Position Update Rate	≥30 times/minute
Positioning Accuracy	≤10 m
Simultaneous Detection Targets (Multi-target Detection)	≥40
Protocol Parsing Function	Supports UAVs equipped with Remote-ID (China GB42590-2023, US ASTM F3411-22a, EU ASD-STAN PrEN4709-002) and Drone-ID (e.g., DJI Mavic 2, Mavic 3, Air 3S, Matrice 4, etc. — some models require network connection for parsing). It can extract detailed information including the UAV’s position and the pilot’s location.
Other Specifications
Parameter	Specification
Power Supply	AC 160~220 V, 50 Hz / 60 Hz
Dimensions	≤320 mm × 260 mm × 110 mm
Weight	≤4.5 kg
Communication Interface	RJ45 100 Mbps Ethernet Port, optional 4G module
Operating Temperature	-20°C ~ 55°C
Storage Temperature	-30°C ~ 60°C
Power Consumption	≤20 W
