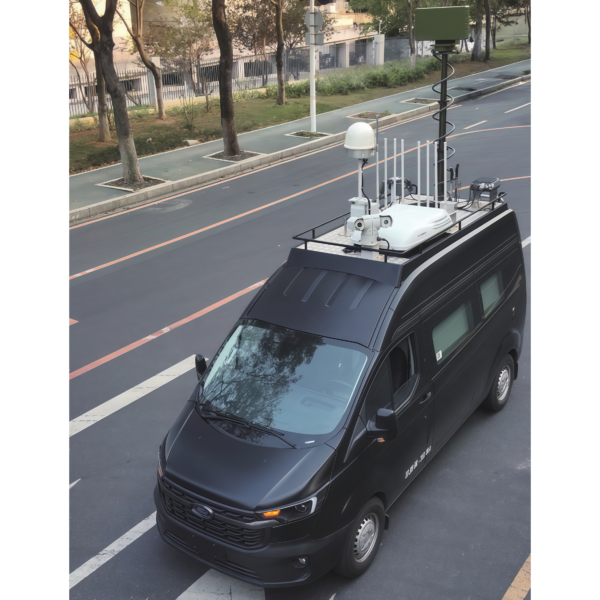

Technical Specifications

Detection and Jamming Coverage Airspace
Parameter	Specification
UAV Detection Range	≥5 km (For UAVs with transmit power of 0.1 W and RCS = 0.01 m²)
Spectrum Coverage Airspace	360° Full Azimuth
Radar Coverage Airspace	360° Horizontal, 0°~30° Elevation
UAV Countermeasure Range	≥3,000 m (For UAVs with transmit power of 0.1 W and RCS = 0.01 m², when the remote controller is 500 m away from the UAV)
Note: All the above indicators are tested under conditions of favorable electromagnetic environment and no obstruction between the target and the vehicle (equipment).
Response Time
System Software Response Time	≤5 s
UAV Signal Detection Time	≤10 s
Radar Data Update Rate	6 s
Counter-UAV Jamming Response Time	≤30 s
Deployment and Retraction Time	≤10 min
Reliability and Safety
Mean Time Between Failures (MTBF)	≥500 hours
Continuous Operating Time (TC)	≥8 hours
Environmental Adaptability
Operating Temperature	-30°C ~ 55°C (external equipment); -20°C ~ 45°C (in-vehicle equipment)
Protection Rating	IP65 (external equipment)
Humidity Resistance	(95±3)% (at 30°C±5°C)
Maximum Operating Altitude	≥4,500 m
Power Supply and Consumption
System Power Consumption	≤6 kW
Power Supply	220 V±5% / 50 Hz
Core Subsystem Specifications
UAV Spectrum Detection Specifications
Main Operating Frequency Band	300 MHz ~ 6 GHz
Detection Range	≥5 km (under favorable electromagnetic environment and no obstruction)
Multi-Target Detection	≥40 targets
First Acquisition Time	≤10 s
UAV Radar Detection Specifications
Radar Band and Mode	Ku-band, azimuth mechanical scanning, elevation electronic scanning
Detection Range	≥5 km (RCS = 0.01 m²)
Detection Speed Range	2–50 m/s
Detection Blind Zone	250 m
Detection Accuracy	Azimuth ≤0.8°, Elevation ≤0.8°, Range ≤10 m
System Capacity	≥200 targets detected simultaneously
Electro-Optical Specifications
Effective Range	For DJI UAVs (0.3 m × 0.3 m), maximum daytime tracking distance ≥3.5 km; maximum nighttime tracking distance ≥1.5 km.
Infrared Thermal Imaging	Uncooled Vanadium Oxide (VOx) infrared focal plane detector, spectral range 8 μm ~ 14 μm, resolution 640×512, NETD: ≤30 mK, lens focal length 22 ~ 230 mm (continuous zoom), 10× optical zoom, field of view 28.4°×22.7° ~ 2.8°×2.3°.
High-Definition Visible Light	Back-illuminated ultra-low-illumination starlight-grade CMOS, lens focal length 12 ~ 1100 mm.
UAV Jamming Specifications
Omnidirectional ISM Coverage Frequencies	410–450 MHz, 840–930 MHz, 1170–1280 MHz, 1410–1470 MHz, 2400–2485 MHz, 5150–5250 MHz, 5725–5850 MHz.
Directional Broadband Jamming Coverage Frequency	200 MHz ~ 6000 MHz.
Jamming Range	≥3,000 m (For civilian small UAVs, under conditions of EIRP 20 dBm, RCS = 0.01 m², and jamming-to-signal ratio of 5:1).
Navigation Spoofing Specifications
Operating Frequency Bands	GPS (L1), BDS (B1), GLONASS (L1).
Transmit Power	≥10 W
Diversion Range	≥5,000 m (For DJI Phantom 4 Pro)

Jamming Subsystem

Omnidirectional Antenna Array
Omnidirectional Antenna Feed
ISM Jammer
Broadband Jamming Source
Servo Motor
RF Feeder Pole

UAV Spoofing Subsystem

Satellite Navigation Antenna
Satellite Jamming Antenna
Navigation Spoofing Module

UAV Detection, Positioning & Tracking Subsystem

UAV Detection Radar
Radar Lift Pole
Spectrum Detection Equipment
- UAV Spectrum Detector (0.3–6 GHz)
- Direction-Finding Receiver (0.2–8 GHz)
UAV Spectrum Lift Pole
Electro-Optical Detection Equipment
Electro-Optical PTZ

Communication Subsystem
