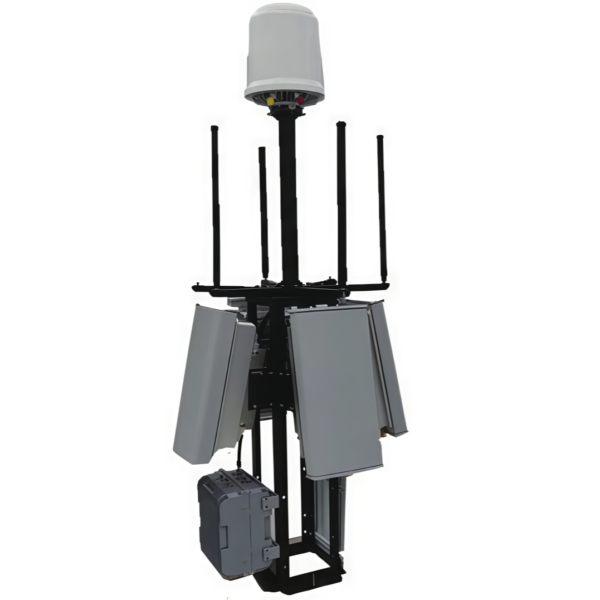

NV-TL UAV Detection and Defense System

Product Overview:

The NV-TL UAV Detection and Defense System integrates passive UAV detection, identification, and jamming capabilities. It can identify common civil UAV models available on the market (including their video downlink and remote control signals), simultaneously detect up to 30 targets, achieve a certain degree of localization of UAV operators, and automatically jam intruding drones.

Product Features:

Detection range exceeds 5 km, with a maximum reach of up to 10 km.
Passive interception of UAV signals ensures immunity to weather conditions, enabling 7×24 all-weather operation without high-power electromagnetic radiation.
Detects UAVs within 3 seconds of takeoff and reports key information including target azimuth, position, time, frequency, confidence level, model, and manufacturer. Integrated with the backend management system, it supports intrusion track query, intrusion alarm, and alert notifications.
Supports both omnidirectional and directional jamming with an optimized jamming-to-signal ratio. The total RF power of the jamming units exceeds 1000 W, featuring specialized jamming waveforms and antenna designs.
Supports automatic standby monitoring; customizable jamming strategies can be set to realize automatic detection and response to intruding UAVs.
Modular design allows for flexible adjustment of parameters such as jamming frequency bands and jamming signal sources.

Technical Specifications

Main Specifications
Parameter	Specification
Detection Frequency	70 MHz – 6 GHz (including 433 MHz / 868 MHz / 915 MHz / 2.4 GHz / 5.8 GHz, etc.)
Effective Detection Range	≥5 km
Detection Coverage	360° Full Azimuth (capable of detecting UAVs directly above the device)
Simultaneous Detection Targets	≥30
Operating Frequency Bands of Omnidirectional Jamming Unit	CH1: 1.555 GHz ~ 1.620 GHz CH2: 1.15 GHz ~ 1.25 GHz CH3: 825 MHz ~ 930 MHz
Operating Frequency Bands of Directional Jamming Unit	CH1:2.400 GHz ~ 2.4835 GHz CH2:5.150 GHz ~ 5.250 GHz CH3:5.725 GHz ~ 5.850 GHz
Jamming Range	≥2000 m (jamming effectiveness varies with different UAV models)
Other Technical Specifications
Parameter	Specification
Power Supply	AC 160~220 V, 50 Hz / 60 Hz
Communication Interface	RJ45 100 Mbps Ethernet Port
Operating Temperature	-30°C ~ 60°C
Storage Temperature	-40°C ~ 70°C
Protection Grade	IP65
