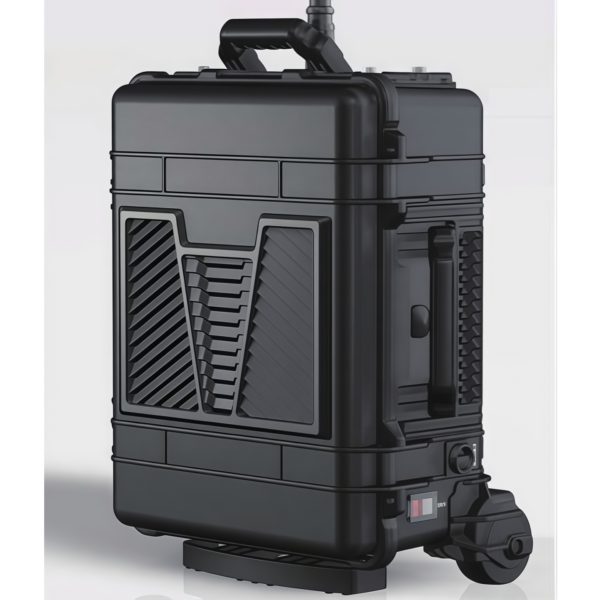

NV-TO Portable Mobile Communication Signal Shielding Device

The NV-TO Portable Mobile Communication Signal Jammer is primarily designed for UAVs that communicate via 4G image transmission mode. It can effectively block 2G, 3G, 4G, 5G and other mobile communication signals, as well as wireless devices that transmit information using mobile wireless frequency bands as the medium.

As a directional full-band communication signal jammer, this portable device does not interfere with surrounding base stations.

Product Features:

1.Unattended Operation Function

When the device is in unattended mode, it can automatically intercept UAVs not included in the system whitelist within the effective interception range and generate event log records for all actions.

2.Networking (Multi-device Networking) Function

Multiple devices can be networked together, enabling full remote operation and management of the entire system.

3.UAV Electromagnetic Jamming Function

By transmitting jamming signals targeting 2G, 3G, 4G, 5G and other mobile communication signals, it interferes with and blocks UAVs that communicate via 4G image transmission modules.

Technical Specifications

Main Specifications
Parameter	Specification
Effective Interception Range	≥500 m (The effective range varies in different mobile communication environments)
Jamming Frequency Bands and Power	CH1: 758 MHz ~ 960 MHz @ 43 dBm CH2: 1805 MHz ~ 2025 MHz @ 43 dBm CH3: 2110 MHz ~ 2400 MHz @ 44 dBm CH4: 2500 MHz ~ 2700 MHz @ 44 dBm CH5: 3400 MHz ~ 3600 MHz @ 39 dBm CH6: 4800 MHz ~ 5000 MHz @ 39 dBm
Input Antenna	700 MHz ~ 6000 MHz
Power Supply	AC 160~220 V, 50 Hz / 60 Hz
Communication Interface	RJ45 100 Mbps Ethernet Port
Operating Temperature	-10°C ~ 55°C
Storage Temperature	-20°C ~ 60°C
Power Consumption	≤350 W
