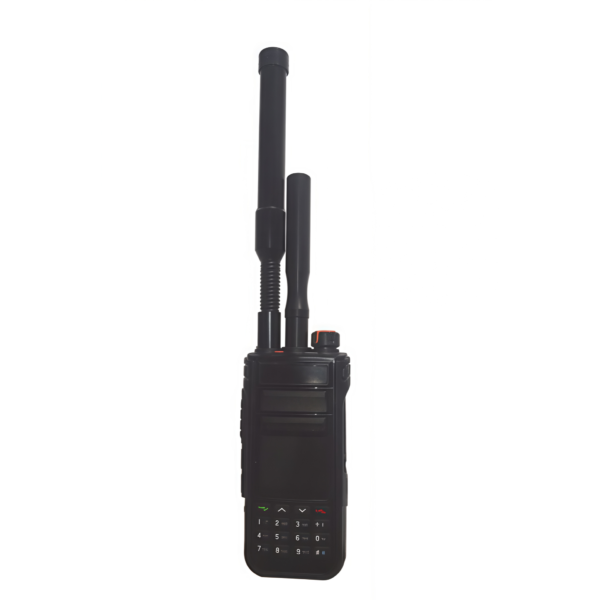

NV-TS Portable Drone Detector

The NV-TS portable drone detector features low power consumption and a highly integrated design. It can detect mainstream multi-rotor drones (such as DJI and Autel) equipped with OFDM high-definition video transmission systems, as well as various DIY FPV drones using analog video transmission.

Featuring dual antennas and multi-channel simultaneous scanning, the device delivers fast detection, high sensitivity, long detection range, low false alarm rate, strong scalability, and ease of operation.

Product Features:

Passive Drone Detection: Detects multi-rotor drones using OFDM HD video transmission (e.g., DJI, Autel), and all types of FPV drones using analog video transmission within the 300MHz–6200MHz frequency range.

Audio & Visual Alarm: Supports headset audio alarm and external audible-visual alarm.

Log Recording & Export: Alarm log recording and USB log export supported.

Firmware Upgrade: Firmware update via Type‑C interface.

Multi-language Support: English and Russian user interface available.

Custom Detection: Users can edit, delete, and add drone signature libraries via the Type‑C interface.

Technical Specifications

Receiving Frequency Band	300MHz – 6200MHz
Recognition Types	OFDM HD video transmission, FPV FM analog video transmission
Detection Range	≥ 1km
Detection Sensitivity	Better than -96dBm
Alarm Methods	Headphone monitoring, audible and visual alarm
Log Storage	Supports ≥ 500 alarm records
Interface	Type‑C (for firmware upgrade and data export)
Power Supply	Removable rechargeable lithium‑ion battery (Type‑C charging)
Battery Life	≥ 6 hours (with a single battery)
Dimensions (Main Unit, excl. Antenna)	≤ 135mm × 60mm × 35mm
Operating Weight (incl. single battery)	≤ 500g
Startup Method	Rotary knob with push‑to‑start
Control Interface	Button‑operated, with volume adjustment, screen backlight control, and UAV detection information display
